X/Y/Z Travel: (1000+1000)x700x500mm
Worktable size: 1700x900mm
Working tank size: 2500x1400x720mm
Machine Dimension: 3700x4750x3500mm
Widely used in making:
2W/3W/4W Molds / Bumper / Grille Fender
A/B/C/ D Pillar / Door panel / Dashboard Household Molds / Furniture Molds Aerospace Military area / 3C molds

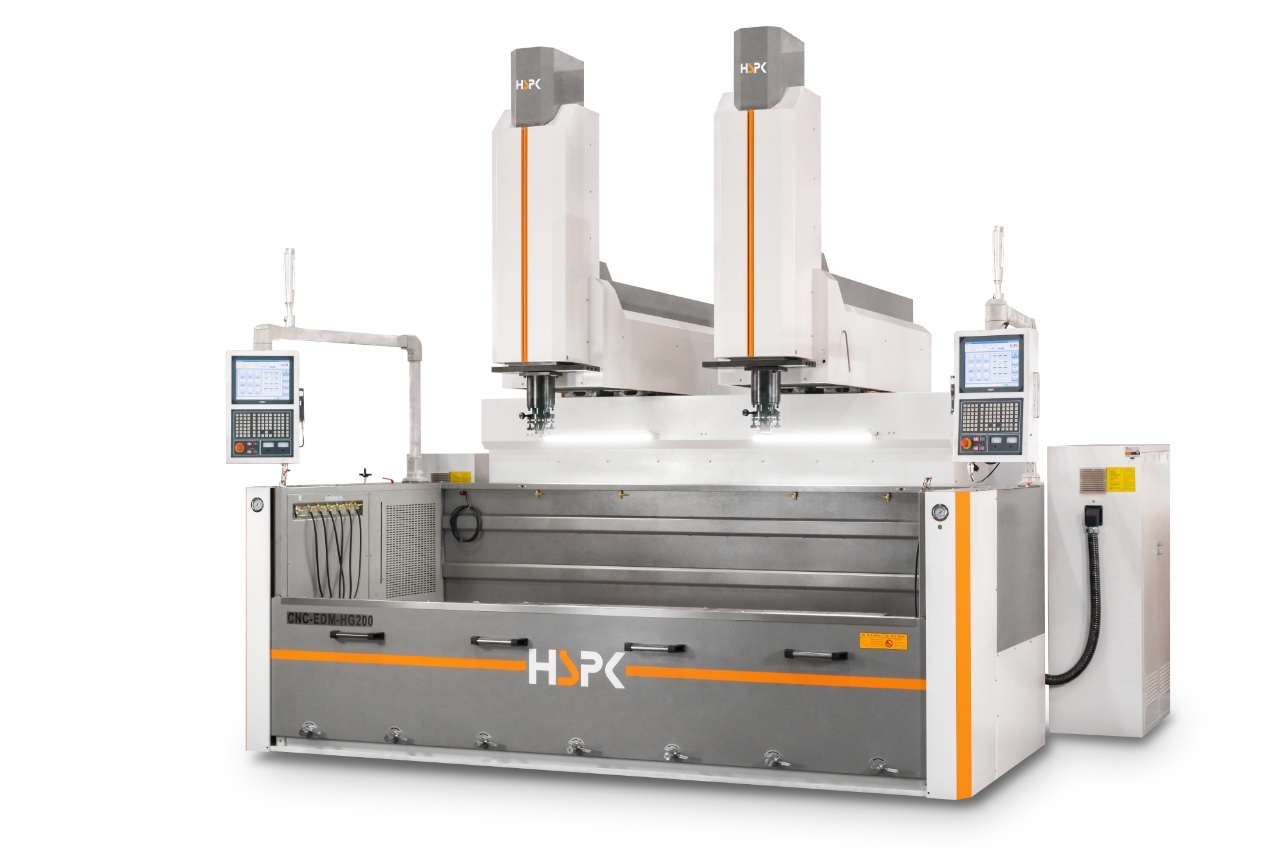

Product Details
Worktable size(LxW) | 1700x900mm |
Travel(X/Y/Z) | L(1000x700x500)mm R(1000x700x500)mm |
Working tank size(LxWxH) | 2500x1400x720mm |
Max. electrode weight | 100kg |
Max. workpiece weight | 0000kg |
Electrode holder to worktable distance | 500-1000mm |
Oil tank capacity | 3000L(Immersion) |
Filter precision | 5um |
Machine weight | 13000kg |
Machine dimension(LxWxH) | 3700x4750x3500mm |
System Main Function
* Latest WINDOWS base operation system
* Intelligent positioning function
* High speed AJC tool lifting
* Auto centering
* Accurate conpensation
* Automatic memory fuction
* Power reset
* Expert data base
* Different type orbinting function
* User-friendly
