X/Y/Z Travel: (1300+1300)x1000x800mm
Worktable size: 2500x1100mm
Working tank size: 3200x1600x1880mm
Machine Dimension: 5000x5280x4000mm
Widely used in making:
2W/3W/4W Molds / Bumper / Grille Fender
A/B/C/ D Pillar / Door panel / Dashboard Household Molds / Furniture Molds Aerospace Military area / 3C molds

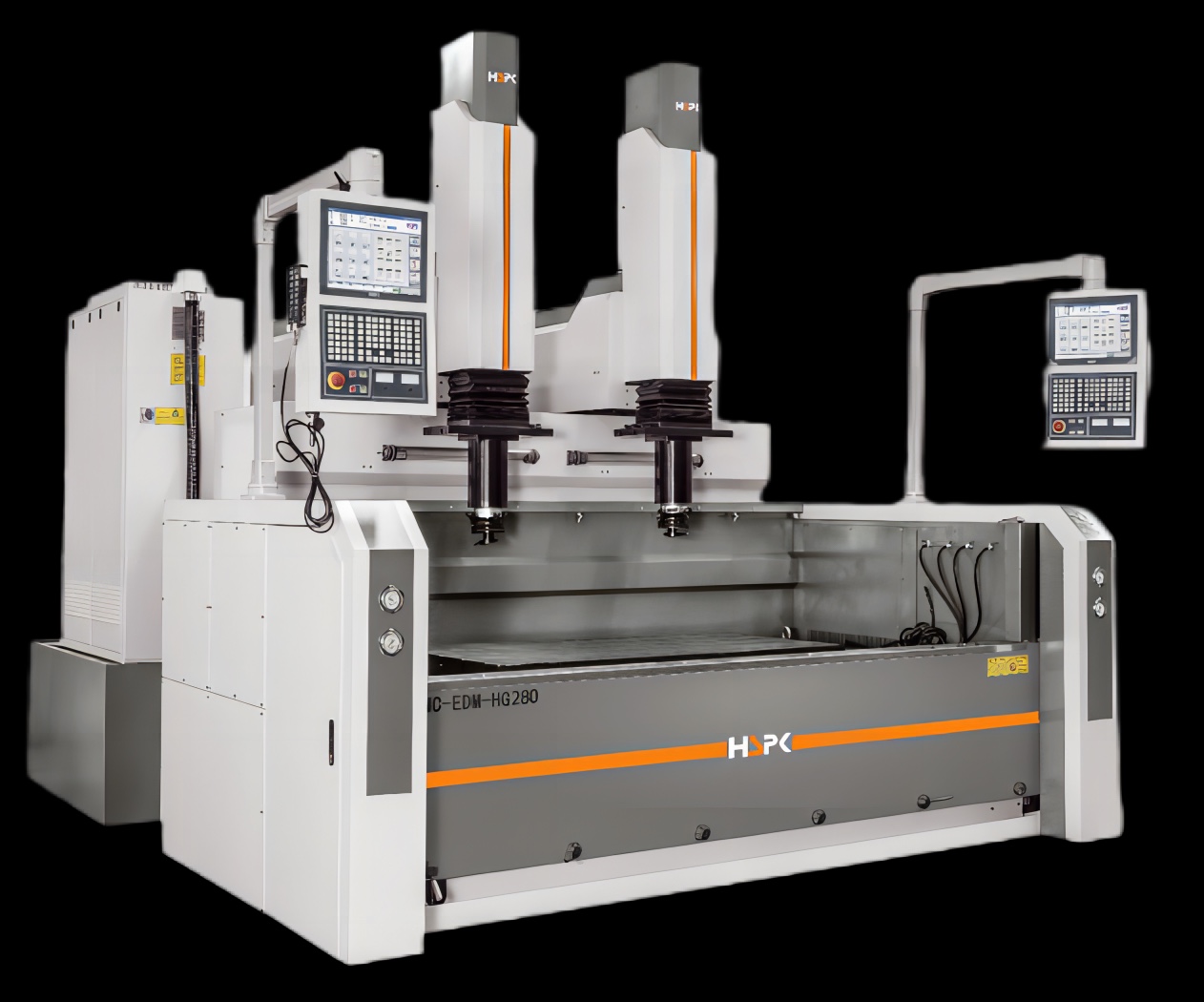

Product Details
Worktable size(LxW) | 2500x1100mm |
Travel(X/Y/Z) | L(1300x1000x800)mm R(1300x1000x800)mm |
Working tank size(LxWxH) | 3200x1600x1880mm |
Max. electrode weight | 100kg |
Max. workpiece weight | 15000kg |
Electrode holder to worktable distance | 800-1400mm |
Oil tank capacity | 6000L(Immersion) |
Filter precision | 5um |
Machine weight | 18000kg |
Machine dimension(LxWxH) | 5000x5280x4000mm |
System Main Function
* Latest WINDOWS base operation system
* Intelligent positioning function
* High speed AJC tool lifting
* Auto centering
* Accurate conpensation
* Automatic memory fuction
* Power reset
* Expert data base
* Different type orbinting function
* User-friendly
